Read/Write Analyzer Detail


Read/Write Analyzers Overview

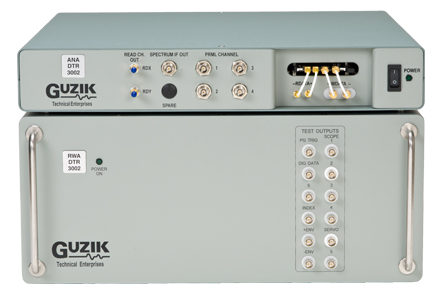

WDM 5044The RWA 2000 (Conventional Media) and RWA DTR 3000 (Patterned Media) Read Write Analyzers function at breakthrough speeds.  The base models are capable of 2Gbit/sec, 3Gbit/sec, and 4Gbit/sec, respectively. With the UP8 preamplifier and MR5 head amplifier, the RWA 2000 Series Read Write Analyzers can reach 2Gbit/sec data rates.  With the latest UP10 preamplifier and MR7 head amplifier, the RWA 2003 and RWA 2004 models to work at their maximum data rate. Other options include a spectrum analyzer, PRML chip adapters, programmable filters, and Guzik servo system. The 2000 Series can work with both Guzik and non-Guzik spinstands.

Detailed Product Specifications

RWA DTR 3000 Detailed Product Specifications

WDM 5044

RWA DTR 3004 Specifications

RWA DTR 3003 Specifications

RWA DTR 3002 Specifications


RWA 2000 Series Detailed Product Specifications

WDM 5044

RWA 2004 Specifications

RWA 2003 Specifications

RWA 2002 Specifications

Documentation

Spinstand The table below details the maximum data rates and analog bandwidths capable with each RWA model.

Model
Maximum Data Rate
Analog Bandwidth
RWA DTR 3004
4 Gbit/sec
2 GHz
RWA 2004
4 Gbit/sec
2 GHz
RWA DTR 3003
3 Gbit/sec
1.5 GHz
RWA 2003
3 Gbit/sec
1.5 GHz
RWA DTR 3002
2 Gbit/sec
1 GHz
RWA 2002
2 Gbit/sec
1 GHz







  • Manuals

Photos and Videos

We are continually adding new multimedia content to these pages, so be sure to check back often.



Options

Options


Option Performance
Universal Preamplifier 10 8Gbit/s write data speed, DC to 4GHz analog bandwidth
MR7 Read/Write Amplifier for GMR and TMR heads 4Gbit/s write data speed, 3GHz analog bandwidth
Universal Preamplifier 8 2Gbit/s write data speed, 1.8GHz analog bandwidth
MR5 Read/Write Amplifier for GMR heads 2Gbit/s write data speed, 1.5GHz analog bandwidth
MR5L LowImpedance
Read/Write Amplifier for TMR
heads		 2Gbit/s write data speed,
2GHz analog bandwidth
Programmable Octave Filters 12GHz, 0.51GHz, 0.250.5GHz, 0.1250.25GHz, 0.050.125GHz, and 0.050.02GHz
Programmable Octave Differentiators 12GHz, 0.51GHz, 0.250.5GHz, 0.1250.25GHz, 0.050.125GHz, and 0.050.02GHz
Guzik Servo for Guzik and Non Guzik Spinstands Guzik Servo Revision 4, Servo writing up to 1,024 sectors, 50 kHz servo sampling rate
Chip Adapter Interface CAI4000 Up to 4 Gbit/sec data rate
Spectrum Analyzer SA960 Frequency domain tests to 960MHz, (Guzik recommends using WDM5000/D5000 Waveform Digitizers for frequency domain tests up to 6 GHz)
