- Spectral Integral SNR Measurement: 10 times faster than measurements via analog spectrum analyzer
- Frequency Domain Tests: overwrite, spectrum analysis, NLTS, partial erasure
- Frequency Range from 0 to 5 GHz
- 8 million points FFT implemented in hardware with resolution bandwidth to 2 kHz
- Averaging Mode
The D5000 Signal Analyzer
opens new possibilities for frequency domain analysis. This
analysis is performed by FFT of the read-back signal. As a
result, spectrum analysis is done in full bandwidth of analyzed
signal and performed much faster compare with analog point-to-point
measurements.
For example, Spectrum SNR test is executed 10 times
faster compare with analog measurements. Resolution bandwidth
is programmable and can be as low as 2 kHz.

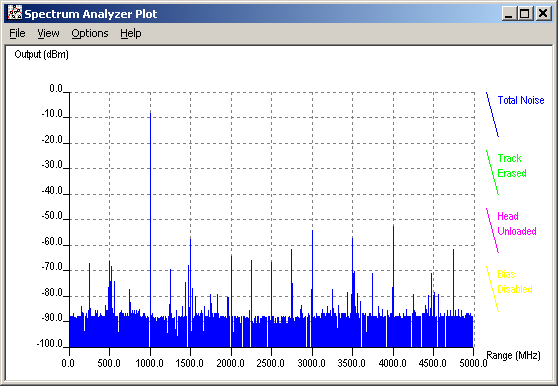

Spectrum Analyzer Plot
Hardware and Software Requirements:
- Guzik D5000 Signal Analyzer
- Guzik RWA-2000 Series
- Guzik V2002 or Canon Spinstand
- WITE32 Revision 4.00 or later
|
