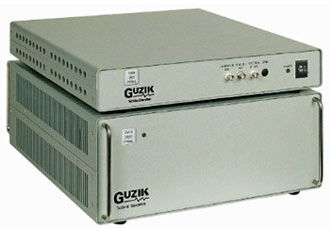

• Guzik Proprietary PRML channel with data rates up to 1G bit/s
• PRML chip integration with data rate up to 2G bit/s
• Fast PRML channel optimization
• Up to 1G flux/s programmable Pattern Generator
• Bit pre-compensation with 5 ps resolution
• 400 MHz bandwidth Spectrum Analyzer

In addition, RWA-2585S 1G PRML provides digital parametric measurements and digital scope functions. This increases the accuracy of all the measurements and reduces the test time. The digital programmable filter allows to specify any cut-off frequency from 60 to 400MHz and select the required type of filter during parametric measurements.

A block diagram of the Guzik PRML channel is shown in Figure 1. Read-back Analog signal is digitized with high oversampling and stored in 4M bytes memory. The digital processing is done after the memory. The speed of data processing in PRML mode is 40 Mbit/s. PR-4, EPR-4, E2PR4 modes can be chosen by software.

Figure 1. Guzik PRML Channel Block Diagram

The PRML channel parameters (write current, bias current, read-write off-set, equalization, and precompensation) can be optimized by a one-button operation, based upon a quality monitor signal. The new function of Guzik PRML channel is a digital shape defect compensation of read back signal including amplitude asymetry cancellation, base line shift compensation etc. The optimization of the read-back signal shape can significantly reduce the error rate. Figure 2 shows the error rate measurements with the Guzik PRML channel for a data rate of 1Gbit/s.

The same hardware is used for digital parametric measurements: TAA, PW, SNR, etc. The speed of the digital data processing in this mode is 80 Msamples/s. The digital measurements provide accurate results of TAA and PW measurements, even with a low signal-to-noise ratio. For example, for SNR as low as 12 dB, the accuracy of the measurements for repetitive patterns is better than 1.5%, when most other measuring equipment cannot provide stable measurements. (See Figure 3 and Figure 4.)

Digital measurements, implemented in the Guzik RWA2585S 1G PRML is the new paradigm in parametric measurements. RWA2585S 1G PRML provides both analog and digital parametric measurements. In the future Guzik Technical Enterprises will provide most measurements based upon a digital approach. This will make it easy to change algorithms, introduce new tests that cannot be done by analog circuitry, change the type of data decoding of the PRML channel, etc.

Figure 2. Off-Track Perfomance at 1 Gbit/s

Figure 3. One Shot Mode, 12 dB SNR

Figure 4. The Same, After Averaging

Features:

• Wide range of PRML tests, includes (but is not limited to):
  • Bit error rate measurements
  • Off-track channel performance
  • Histograms of sampled values distribution
  • Sequential amplitude margin (SAM) tests
  • Amplitude margin error rate prediction
• Digital shape defect compensation of read-back signal reduces the error rate with MR and GMR heads
• Non-linear transition shift (NLTS) measurements:
• Pseudo-random pattern auto-correlation
• Harmonic elimination
• Correlation noise
• Optimization of PRML channels:
• Based on error rate measurements
• Based on channel quality monitor
• Customized optimization algorithms
• Digital scope mode:
• 2Gsamples/s 8 bits single shot mode, 4 Mbytes memory
• Average mode
• All industry-standard parametric measurements, based upon digital processing
• Digital programmable filter up to 400 MHz
• Digital 20 taps Equalizer increases the accuracy of equalization and the flexibility of the PRML channel
• Fast amplitude stability test with simultaneous measurements of positive and negative pulse amplitude
• The Spectrum Analyzer provides frequency domain tests:
• Overwrite
• Spectrum analysis
• NLTS measurements
• Signal to noise ratio (including transitional noise)
• Partial erasure
• All tests are implemented in WITE32 software

Maximum Data Rates

• PRML: up to 1G bit/s
• Error rate analyzer:
• Guzik PRML channel: up to 1G bit/s
• Chip Integration: up to 1G bit/s (limited by PRML chip capability)

Digital Parametric Measurements

• Bandwidth: 0.1 to 550 MHz at -3 dB
• Flatness: 0.3 to 400 MHz at ±0.2 dB
• Typical non-linear distortion: better than 1%
• Digital measurement accuracy (repetitive patterns):
• TAA: ±0.5% (down to 15 dB SNR)
• Pulse width: ±1.0% (down to 15 dB SNR)
• SNR: ±0.2 dB (down to 15 dB SNR)
• Modulation: ±1%
• Crest factor: ±1%

PRML Chip Integration

• Plug-in chip adapter module
• Data rate: up to 2G bit/s (PRML chip limited)
• PRML chips: from Cirrus Logic, DataPath, GEC Plessey, IBM, Lucent Technology, Marvell, NEC, SSI, and others.
  New PRML chips integrated on request.
• Optimization
  • Based on channel quality monitor
  • Based on error rate measurements
  • Customized optimization algorithms
• Wide range PRML Tests including
  • Bit error rate measurements
  • Off-track channel performance

Digital Scope Mode

• Single shot 2Gsamples/s, 8 bit
• Memory: up to 4 Mbyte
• Analog bandwidth: 0.1 to 550 MHz at -3 dB
• Flatness: 0.3 to 400 MHz at ±0.2 dB

Analog Channel 985B PRML

• Bandwidth: 0.1 to 550 MHz at -3 dB
• Flatness: 0.3 to 400 MHz ±0.2 dB
• Group delay: flatness 200 ps, up to 400 MHz
• Programmable attenuator: 36 dB in 2 dB steps
• Typical non-linear distortion: better than 1% (400 MHz, output level 300mV p/p single-ended)
• Filters:
• 4 low pass or programmable filters (custom cutoff frequencies for low pass filters up to 400 MHz)
• high/band pass filters available for popcorn noise measurement

Built-in Spectrum Analyzer

• Overwrite
• Spectrum analysis
• NLTS measurements
• Signal to noise ratio (including transitional noise)
• Partial erasure

• Frequency range: from 0.5 to 400 MHz
• Frequency resolution: 10 Hz
• Accuracy: ±0.2 dB within 70 dB dynamic range
• Selectivity:
  Switchable -
  100 kHz at -3 dB; 500 kHz at -60 dB
  140 kHz at -3 dB, 850 kHz at -60 dB
• Video bandwidth: 100 kHz
• Noise floor level: better than -80 dB

Write Channel

• Frequency Synthesizer: up to 2 GHz with better than 1 Hz resolution
• Frequency stability: ±2.5 ppm up to 75 C, ±1 ppm/year
• Pattern generator: Up to 1G flux/s, programmable pattern up to a maximum of 32 Kbytes of encoded data and hierarchical pattern structure
• Pre-compensation: three pre-compensation values with a 5 ps resolution can be assigned to any bit in a pattern, or an unlimited number of pre-compensation values at 20 ps resolution can be assigned to any bit in a pattern
• Jitter: 10 ps RMS (typical) for a random pattern

Guzik MR Head Amplifier
(refer to separate brochure for detailed specification)

• Write data speed: more than 1Gflux/s
• Rise/fall time of write current: < 800 ps
• Write current: programmable 0 to 80 mA
• Write to read recovery time: < 1.0 µs (typ.)
• Differential voltage sense amplifier
• Bandwidth: >400 MHz
• MR Bias current: programmable -8 to 8 mA (+/-12 mA optional)

Head Amplifiers (commercial chip based)

• More than 100 types available
• Amplifiers with separate read and write chips
• Parallel/serial control of head amplifier chip
• TSA & CAM style cartridge designs
• Available in variety of wire and TSA terminations.
• Write current: programmable 0 to 80 mA in 0.02 mA steps.
• MR read bias: programmable up to 20 mA (the range of the bias current depends upon the type of head amplifier) in 0.01mA steps or serial control of bias current.

Physical

• RWA-2585S:
• Size: 21.6" x 17.6" x 7.3"
• Weight: 39 lbs.
• Power: 100-240 VAC (±10%, 50/60 Hz)
• ANA-985B:
• Size: 19.0" x 17.6" x 3.3"
• Weight: 10 lbs
