See the DTR 3000 In Action



Guzik is conducting technical demonstrations on the new DTR 3000 Discrete Track Recording Test System in our Mountain View, CA Customer Showroom.



Please send a request to sales@guzik.com to arrange a demonstration.

Service and Support

Check on a sales order, request a quotation, download a file, ask for technical assistance, or attend a training class.



Click here to learn how.

AXIe-1 High-Speed Multi-Channel Waveform Digitizers
Digital Acquisition and Processing Modules

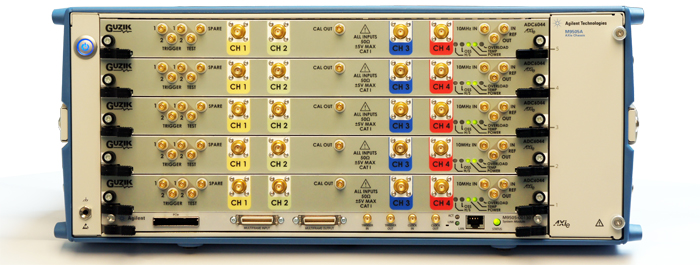

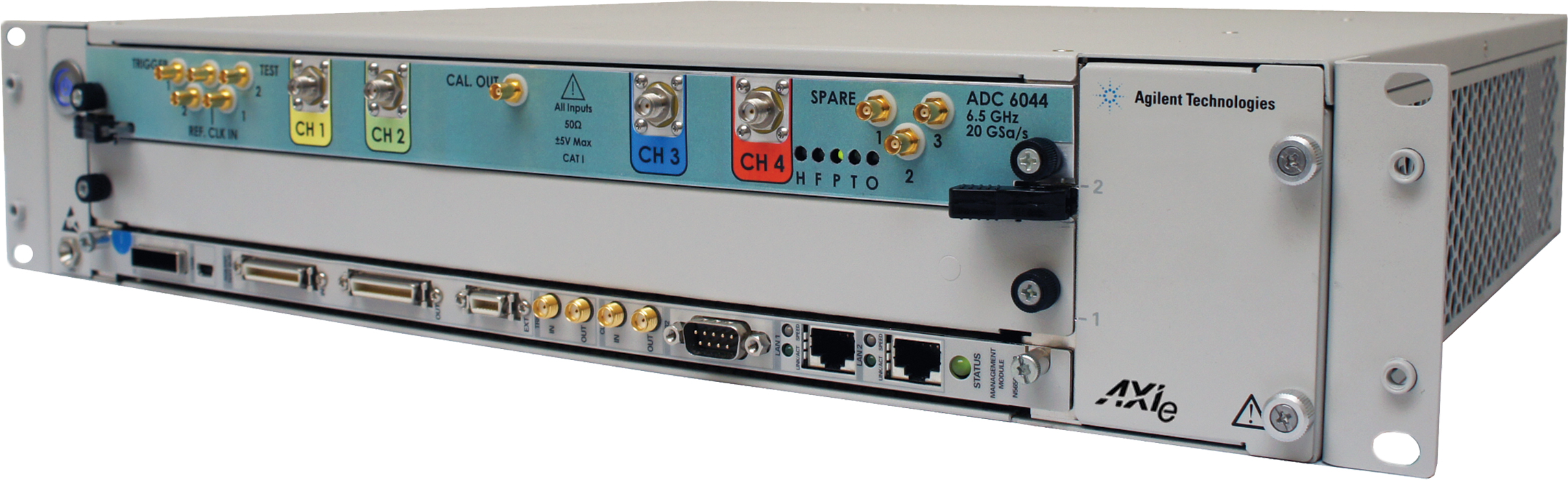

ADC 6000 Series AXIe-based Digitizer ModuleADC 6000 Series AXIe-1 Digital Acquisition and Processing Modules combine Keysight Technologies 8-bit analog-to-digital converter technology (up to 40 GSa/s and 13 GHz analog bandwidth) with built-in digital signal processing hardware and high-speed data transfer link to a computer. ADC 6000 comes with up-to 128 GBytes of acquisition memory. Total of 1.66 TByte of acquisition memory available in 14 slot AXIe chassis. ADC 6000 features an FPGA-based reconfigurable digital signal processor with up to 10 GSa/s per FPGA processing speed. The PCI Express Gen 2 link with up-to 1.6 GByte/sec data transfer rate provides fast transfer of the processed data to the host computer's GPU and CPU-based processing back-end. The ADC 6000 digitizer comes in a space-saving display-less 1U AXI-1 module form factor. Three models available: ADC 6044, ADC 6082 and ADC 6131 Learn more about ADC 6000...

GSA 6000 Series Guzik Signal Analyzer

GSA 6000 Waveform Digitizers Guzik GSA 6000 series Signal Analyzer combines high-speed waveform digitizer (up to 40 GSPS and 13 GHz analog bandwidth) with built-in digital signal processing hardware and high-speed data transfer link to a computer. GSA 6000 comes with up to 64 GBytes of acquisition memory. GSA 6000 features an FPGA-based reconfigurable digital signal processor with up to 7 GSPS combined processing speed. The PCI Express Gen 2 links with up to 8.8 GByte/s data transfer rate provides fast transfer of the acquired data to the host computer's GPU and CPU-based processing back-end. The Signal Analyzer comes in a space-saving display-less 2U 19" rack-mounted form factor.Learn more about GSA 6000...

Read-Write Analyzer Systems 4000 Series

Read-Write Analyzer Systems 4000 Series The 4000 Series RWA System belongs to a new generation of Guzik test systems. The 4000 Series RWA Systems consist of two units: Read-Write Analyzer RWA 4000 series and Signal Analyzer GSA 6000 series. RWA-4000 Systems feature all-digital read channel, write data rate up to 8GBit/s, fast spectrum analysis up to 3.2GHz, all-digital low-pass filters, universal all-digital Guzik and Hard Drive / DTR servo decoder, built-in oscilloscope capability with four separate channels.Learn more about RWA 4000...

DTR 3000 Discrete Track Recording Test System

Introducing the new DTR 3000 – the most complete test solution for emerging patterned media-based heads, media and drives. The DTR 3000 System consists of the new DTR 3000 Spinstand, the WDM 5044 Waveform Digitizer and your choice of the 2 GHz, 3 GHz or 4 GHz RWA 3000 DTR Read-Write Analyzer. Both drive servo and Guzik servo can be decoded, and all decoding is handled by a programmable digital decoder (as opposed to a PRML chip.) Media design teams now have the flexibility to experiment with various configurations of servo patterns without waiting for a new revision of the PRML chip. The new Guzik DTR 3000 Spinstand includes an advanced media centering mechanism. The ultra-stable platform is designed for recording densities of 720kTPI and features track following with residual RRO better than 7 nm, plus a high-bandwidth servo loop with typical NRRO of 0.2–0.6 nm. Learn more...

Magnetic Recording System Upgrades and Enhancements

Spinstand Guzik has a variety of important system upgrades available for users of our magnetic recording test systems. Our new Servo Improvement Package increases servo positioning accuracy up to 0.4 nm (0.016 µInch), 1 sigma, increases accuracy and repeatability of Triple Track, Track Profile, and W/R Offset measurements up to 0.5-0.8 nm (0.02-0.03 µInch), 1 sigma, and reduces production test time by saving 3-5 seconds per head per test location, compared to a standard servo. Learn more...

The new V2002 Spinstand Cartridge is equipped with a Piezo Actuator to achieve up to 3 kHz bandwidth of the servo closed loop. The cartridge reduces non-repeatable run-out up to 0.35-0.60 nm (0.014-0.024 µInch), 1 sigma. High servo bandwidth also minimizes seek time and thus improves the execution time for a number of WITE32 tests. Learn more...
